ERW/HFW Steel Pipe
ERW/HFW Steel Pipe
Outer Diameter:1/2″-28″
Wall Thickness:1.65-20mm (all schedules)
Length:1-12m or as customer requirement
Standard:ASTM 5L, ASTM A53, ASTM A178, ASTM A500/501, ASTM A691, ASTM A252, ASTM A672, EN 10217

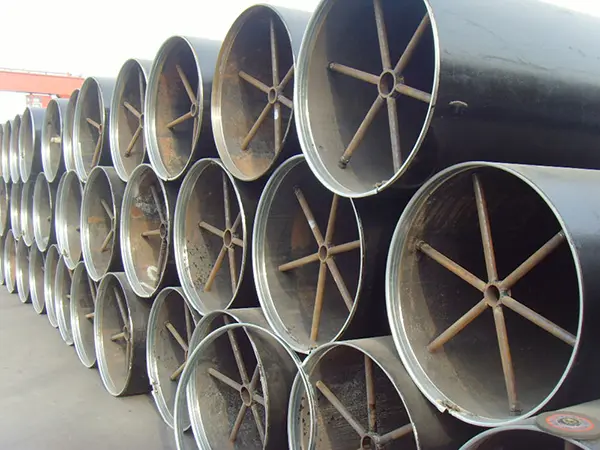

LSAW Pipe
Product Dimension:WELD:356-1626mm,WT:6.4mm-32mm.Length:3.0m-12.5m
Standard:API SPEC 5L PSL1&PSL2,ISO 3183,ASTM A53,ASTM A500,ASTM A252,ASTM A671,ASTM A672,
ASTM A691,EN10210,EN10217,EN10219 etc
Grades:Grade A/B,X42-X80,PSL1&PSL2, B50,B60,B70,C60,C65,C70,CC60,CC65, CC70,CB60,CB65.
CB70,Q215-345,GradeA-E,Grade 1-3,STK290-540,S275JRH, S275JOH,S275J2H,S355JRH,
S355JOH,S355J2H,P355NH, P355GH,S460JR,S460J0,S460J2,P460NH, P460GH

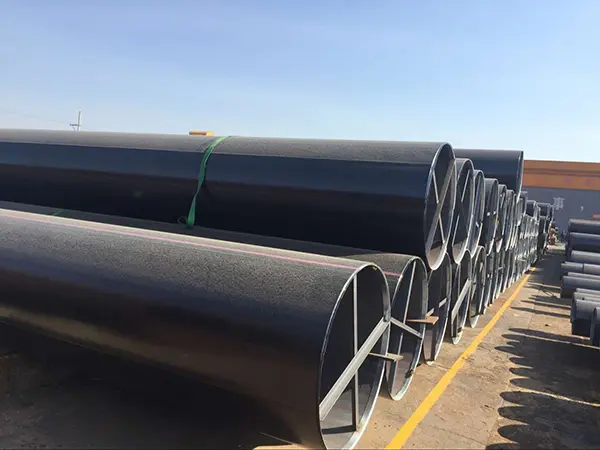

EFW Pipe
Standards&Grades：
ASTM A671/ A671M, ASTM A672, ASTM A691, ASTM A692 B50,
B60,B70,C60,C65,C70,CC60,CC65,CC70, CB60, CB65,CB70
Outside Diameter:14″OD to 72″ OD
Wall thickness: 8.0mm-200mm
Length：4-12.5m
Uses: Used for Pressure vessel pipeline.

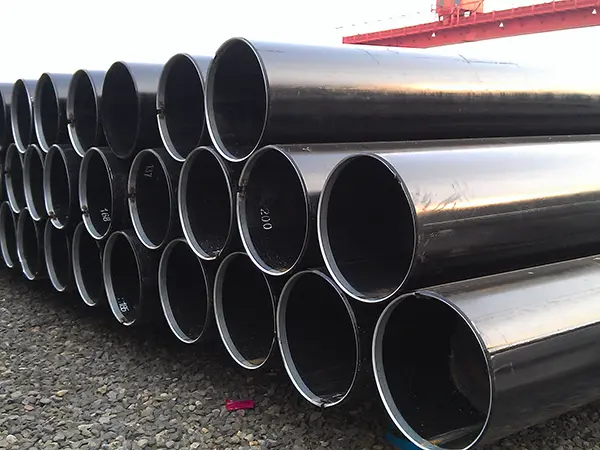

JCOE PIPE
The continuous shaft twisting J-C-O (J-ing, C-ing and O-ing) process is adopted, which has the characteristics of high forming accuracy, high efficiency and uniform forming stress distribution. The outer diameter of the production specification is Φ356~Φ1626mm, the wall thickness is 6~50mm,It is mainly used for transportation pipes for various purposes such as petroleum, chemical industry, natural gas, electricity, city gas, water supply and drainage, and is also widely used in construction, bridges, docks and other engineering fields.
Piling Pipe
Standard: API 5L, API 5CT, ASTM A252, ASTM 53, EN10217, EN10219, BS 5950, ASTM A572 , JIS
Out Diameter: 219.1mm–3048mm
Wall Thickness: 5.0mm-30mm
Length: Up to 70m
Steel Grade:
API 5L: GR A, GR B, X42,X46, X56, X60,X65,X70
ASTM A252 GR 1, GR 2, GR 3
ASTM A53: GR A, GR B, GR C, GR D
BS 4360: Grade 43, Grade 50
EN: S275, S275JR, S355JRH, S355J2H

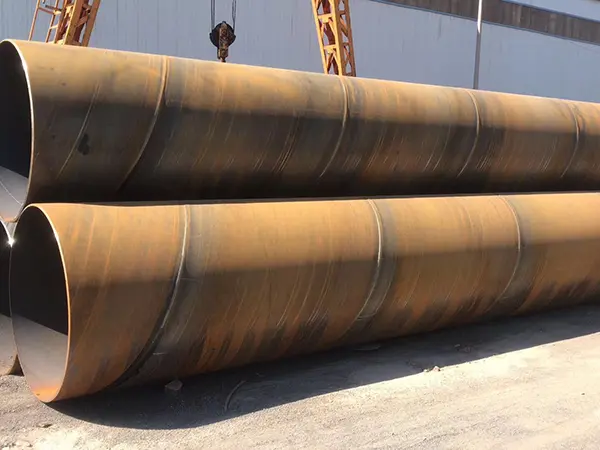

SSAW Steel Pipe
Size:OD: 219mm-4064mm, WT: 3.2-40mm, LENGTH: 3-70m
Grades:Q235A、 Q235B、 Q345、L245(B)、 1290 (X42) 、 1320 (X46) 、 1360 (X52) 、 L390(X56)、 L415(X60)、 L450(X65)、 L485(X70)、 L555(X80)、 1290M (X42M) 、 1360M (X52M) 、 1390M(X56M)、 IA15M(X60M)、 IA50M(X65M)、 IA85M(X70M)、L555M(X80M).
Standard:
API5L PSL1/PSL2 Gr.A,Gr.B,X42,X46,X52,X56,X60,X65,X70;
ASTM A53/A252/A500/ EN10219/EN10208/EN10297/JIS G3457
